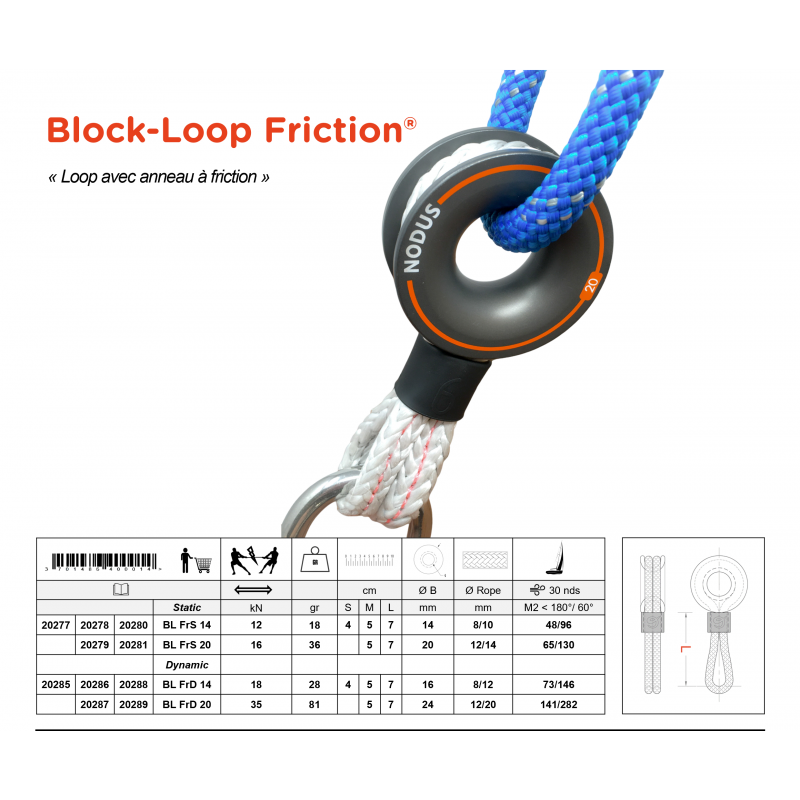

Block-loop® friction is a textile loop sheathed in Dyneema® designed for low-friction rings.
It is supplied with the locking ring, a product of the Plug and Sail™ range.
Materials: Dyneema® / Polymer / Duralumin
See features below
Secure payment Credit
Customer ServiceThe Block-loop® friction, is a coated textile loop designed for a low-friction ring.
Repairability index - (Link to explanatory table)
Find all the information on the load forces according to the deflection angle HERE
| Designation | Breaking Load |
Sail Area |
under Ring length |
Internal Ø | Rope Ø | ||
| Ring |
M2 ≥ 60° Coef 2 |
Ring | recommended | ||||
| kN | S | M | L | mm | mm | ||
| BL 14 FrP | 12 | 33 | 4 | 5 | 7 | 13 | 6/8 |
| BL 20 FrP | 16 | 44 | 5 | 7 | 19 | 8/12 | |
| BL 14 FrD | 18 | 49 | 4 | 5 | 7 | 16 | 8/12 |
| BL 20 FrD | 50 | 130 | 5 | 7 | 24 | 12/20 | |

The Block® rings are clamping and holding rings, for pulleys and rings with low friction, on textile loops and with Nodus Factory shackles.
Loop and Ring - Universal Ring Connector | LR®
Loop and Ring LR®: Adjustable Dyneema® Loop for Low-Friction Ring The Loop and Ring LR® is an adjustable Dyneema® SK78 loop designed to connect to a low-friction ring. This textile connector allows you to create halyard or sheet leads. Available options: Connector only with P-Tech ring (static use) with C-Tech ring (dynamic use with Dyneema® rope) with Fr-D ring (dynamic use)
Soft shackle in Dyneema® with friction ring | Block-shackle® friction
The Block-shackle® friction is a coated Dyneema ® textile shackle designed for low-friction rings. It is supplied with the locking ring, a product of the Plug and Sail™ range. Materials: Dyneema® / UHMWPE / Aluminium / Duralumin
Pulley for Sailboat | Block-Loop Nub®
The mast foot pulley , Block loop Ring-Nub®, is a pivoting clevis pulley made of Dyneema® textile. . This high-load, low-friction Ring-Nub pulley will be ideal at the foot of a mast. Backstay pulley, masthead sheaves. Supplied with the locking ring, a product from the Plug and Sail™ range.
Adjustable and lockable loop for friction ring| Lock-B®
Lock-B®: The Self-Tightening Textile Connector for Friction Rings The Lock-B® is an exclusive innovation from Nodus Factory: a Dyneema® textile connector featuring an adjustable, self-tightening loop . It’s the universal solution for instantly and securely attaching your low-friction rings, with no knowledge of knot-tying required. Designed for heavy loads, the Lock-B® stands out for its ultra-sturdy two-strand construction. Its flexibility and adjustability make it an indispensable accessory for a wide range of applications. Compatible with: FrD® Ring FR® RING NUB®
